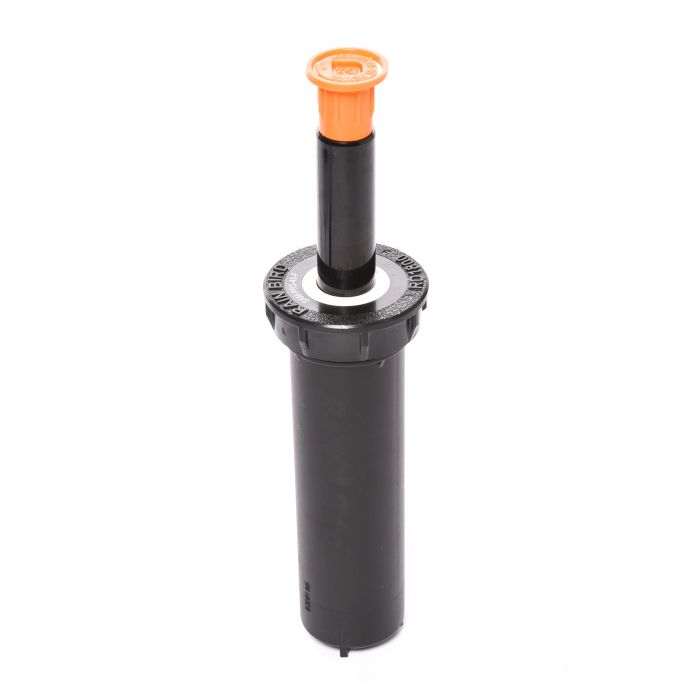

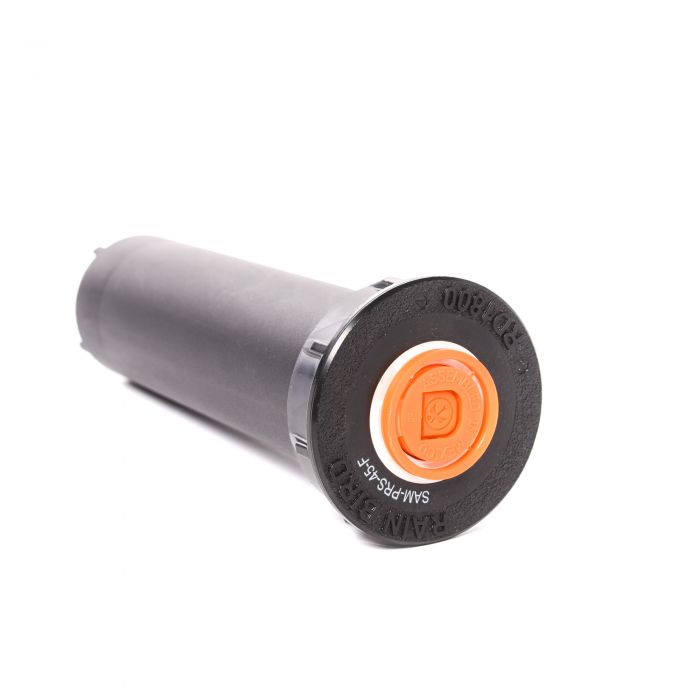

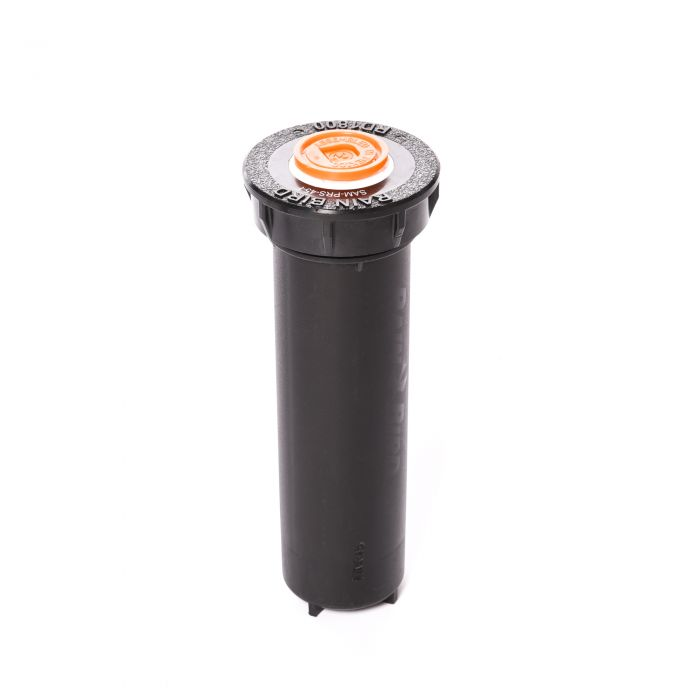

RainBird 1800 Series Pop-up Spray Body with SAM Check Valve

For irrigation of home gardens and small urban green areas and green roofs.

These heads can be used with various types of RAIN BIRD nozzles (VAN; HE-VAN, MPR; U; R-VAN) and HUNTER (A; MP ROTATOR)
Ratchet mechanism for all models for easy nozzle installation.
No tools required. Simple arc adjustment, Two piece ratchet mechanism ensures durability.
Quick and easy sector adjustment thanks to the knob mechanism, even while the sprinkler head is in operation.
Easy maintenance of internal components from the top of the sprinkler head.
A pressure actuated surface seal eliminates excess flow and reduces the ingress of debris.
Durable stainless steel return spring.

SAM: foot valve – the sprinkler is equipped with a foot mechanism, thanks to which we avoid the uncontrolled leakage of water at the height of the terrain difference. It prevents backflow of water from the spray heads on a lower level.

DIMENSIONS:

• supply 1/2 “
• outer diameter: 5.7 cm
• case height: 15 cm
• pop-up height: 10 cm

TECHNICAL DATA:

Pressure 1.0-2.1 bar
Spacing: depending on the nozzle used
