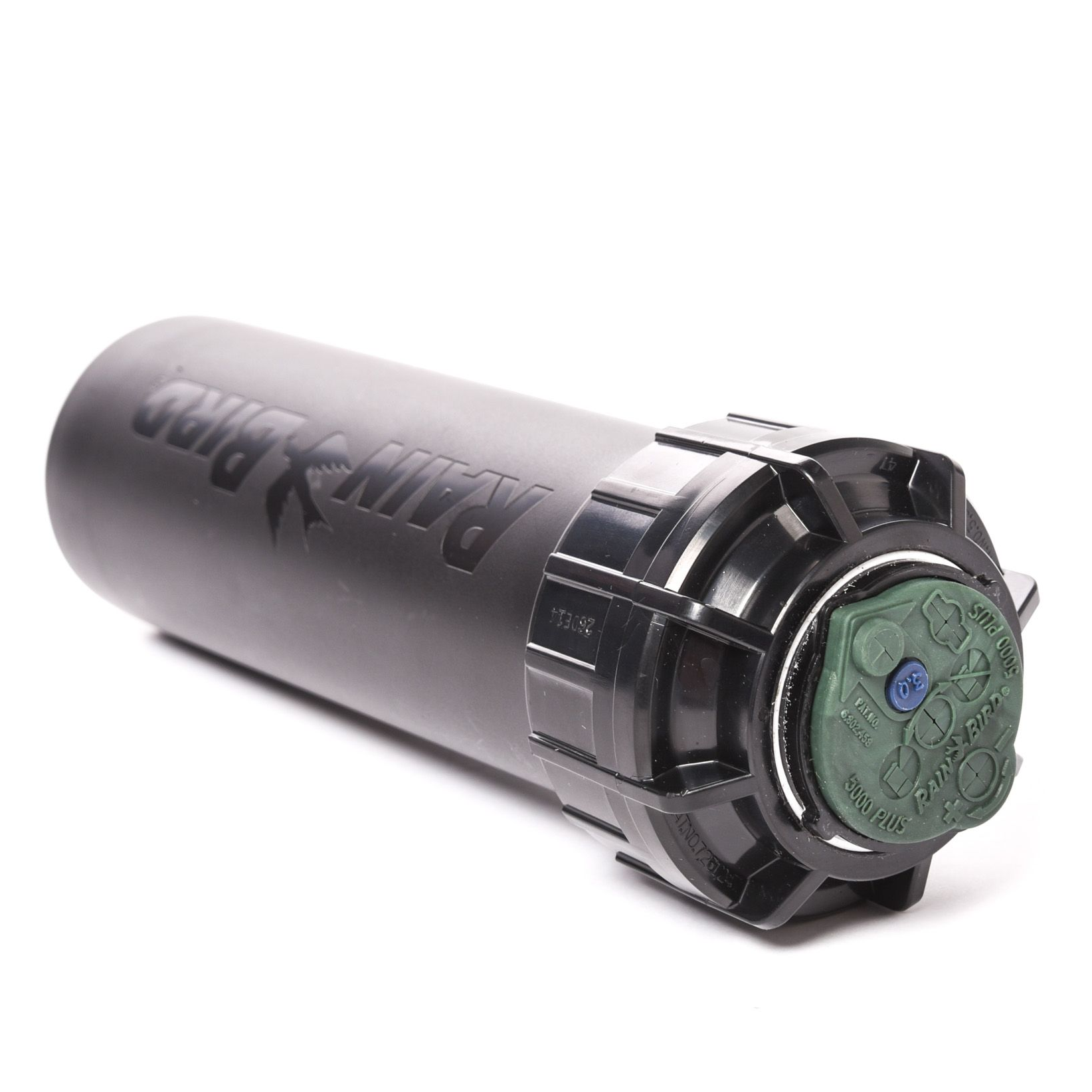

Rain Bird 5004 Plus SAM,PRS & SS PC 3.0 Adjustable Sprinkler Rotor 40-360 + Nozzles
Application:
The 5000 Plus mid-range sprinkler series rounds out the ultimate Rain Bird family of top-adjustable sprinklers. They are characterized by greater durability, excellent quality and efficiency.
Both when used in home gardens and in commercial buildings.
Properties:
• Faster and simple nozzle replacement: to shut off the water supply at the head, simply turn the screw 180 degrees with a screwdriver.
• Rain CurtainTM technology ensures even water distribution and keeps the lawn in perfect condition.
– Range increase due to lowering
flow rates in individual
nozzles.
– New micro ramps for the better
irrigation near the sprinkler.
• Standard rubber housing.
• Nozzle kit includes small angle nozzles and standard Rain CurtainTM nozzles.
• Durable cover perfect for home gardens and on
commercial areas.
• Debris SentryTM integrated in the rotor turret protects the interior from contamination.
• Durable return spring ensures efficient retraction of the device.
• Water-lubricated gear for extended service life.
• 40-360 ° sector rotation for full-range and sector settings in one (only full-range versions also available).
• The radius adjustment screw allows radius reduction by up to 25% without changing the nozzles.
• Actual ascent height measured from the cover to the 10 cm nozzle.
• The multi-functional pressure-actuated seal protects the interior from contamination and ensures smooth ascent and return.
• Additional “O-rings” and seals to protect against “mechanical” contamination in the water.
Optional:
– Stainless steel stand cover on SS models.
– The SAM foot valve prevents gravity flow of water from low-lying sprinklers with a difference of terrain up to 2.1 m.
• Simpler system design process. Nozzles with different angles and radii can be used in one section thanks to nozzles with an adjustable rainfall dose.

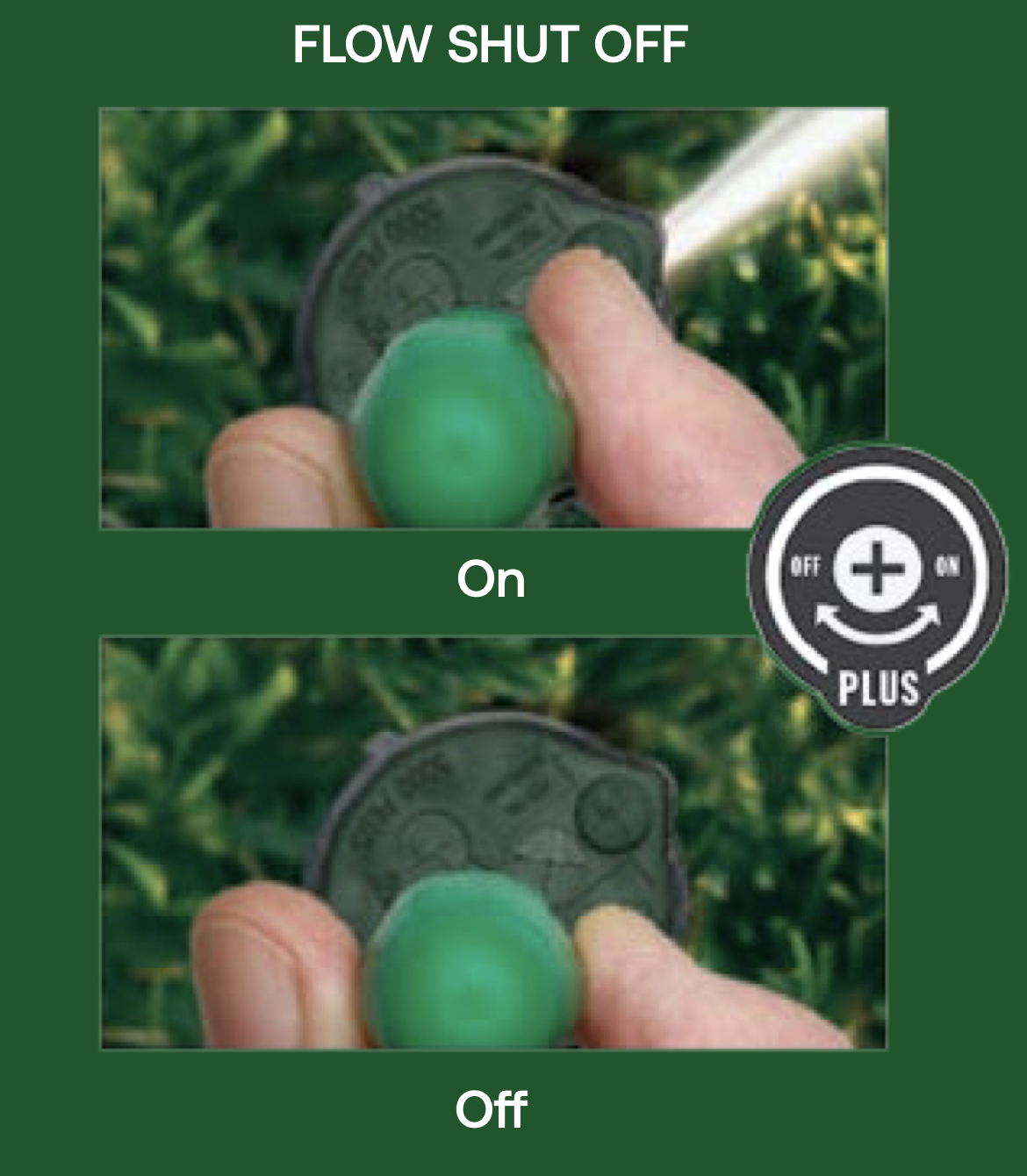

Turn the rotor on/off at the head for easier maintenance
- Flush zone and nozzle rotor without going back and forth to a valve or controller
- Troubleshoot for leaks by turning off all the heads in that zone
Technical data:
Radius: 7.6 m to 15.2 m
Radius after reduction: 5.7 m
Pressure: 1.7 to 4.5 bar
Flow: 0.17 to 2.19 m3 / h
Spray angle:
– Rain CurtainTM nozzles with standard angle: 25 °
– Low angle Rain CurtainTM nozzles: 10 ° Bottom 3/4 “female thread
Dimensions:
Pop-up height: (from the cover to the nozzle):
– 5004/5004 Plus: 10 cm
Housing Height: (with Pop-Up Tucked)
– 5004/5004 Plus: 18.5 cm
Outer diameter: 4.1 cm
