Understanding BSP Threads: How to Measure and Match Irrigation Connectors
If you have ever ordered a plastic plumbing component online, grabbed your steel tape measure, and realized with a groan that the part doesn’t fit your garden tap or solenoid valve, you are definitely not alone. The single biggest headache for DIY irrigation installers—and even some general landscapers across the UK—is understanding how plumbing threads are sized. In the irrigation trade, we don’t use standard metric millimeters for screw joints; we use BSP (British Standard Pipe) threads.
The confusion starts when someone measures a thread with a standard ruler, sees that it is roughly 26mm wide, and assumes they need a 1-inch fitting. In the world of BSP, that is completely wrong! At MB Irrigation, we handle hundreds of threaded parts every week at our counter near Warrington. To save you time, money, and shipping returns, here is our definitive trade guide to measuring and matching BSP threads for your garden irrigation system.
The Golden Rule: Why a 1-Inch Thread Isn’t 25mm Wide
The historical reason behind BSP thread naming can be a bit confusing. Back in the 19th century, when British engineers first standardized iron water pipes, a “1-inch pipe” referred strictly to the internal bore diameter of the steel tube, not the external screw thread. Because the steel pipe walls had to be thick to handle water pressure, the external thread diameter naturally ended up much wider.
Fast forward to modern times, and we now use advanced, thin-walled plastic and brass fittings. However, the old industrial naming system stuck. Therefore, when an irrigation part is labeled as a **3/4″ Male Threaded Adaptor**, it does not mean the thread measures 3/4 of an inch on a ruler. It means it is designed to fit a standard pipe assembly that has a 3/4″ nominal bore rating.
The MB Irrigation BSP Thread Measurement Chart

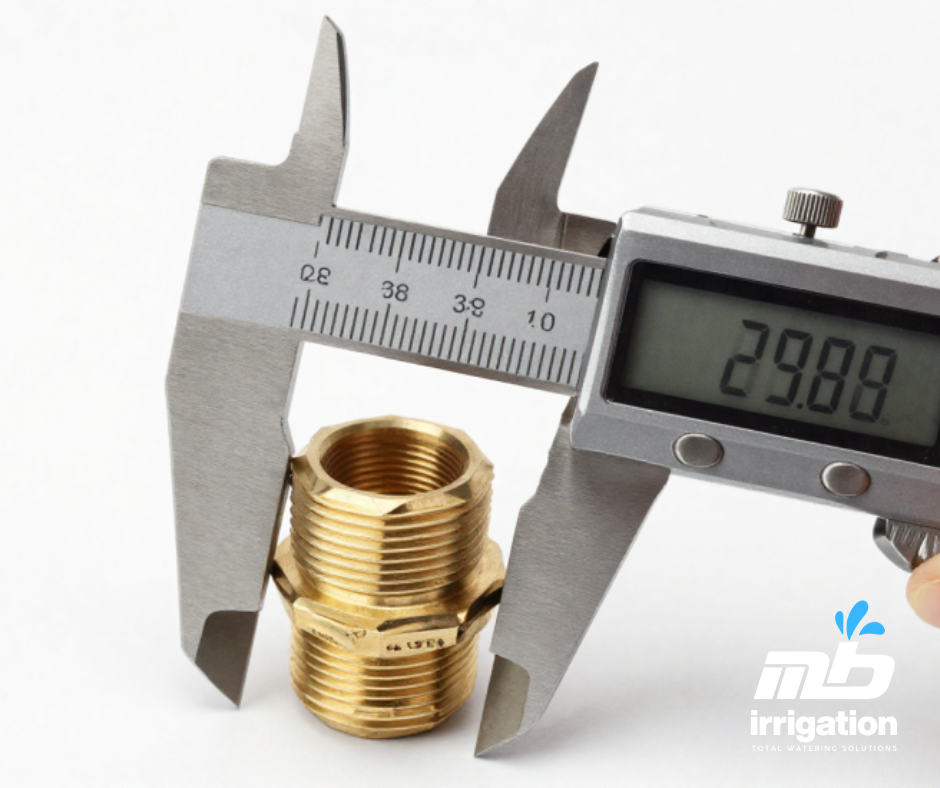

To get a flawless match every single time, you need to measure the actual diameter across the peaks of the thread (using a caliper or tape measure) and check it against our simple trade conversion chart below:
| Nominal BSP Thread Size | Approx. Male Thread OD (Outer Diameter) | Common Irrigation Application | Matching Store Link |
|---|---|---|---|
| 1/2″ BSP | approx. 21.0 mm (0.82 inches) | Small pop-up sprinkler bases, micro-spray risers, and small multi-zone nodes. | Small Threaded Parts |
| 3/4″ BSP | approx. 26.4 mm (1.04 inches) | Standard UK outdoor garden taps, domestic water meters, and mid-sized valves. | Standard Tap & Valve Fits |
| 1″ BSP | approx. 33.2 mm (1.31 inches) | Professional manifold assemblies, high-flow solenoid valves (Hunter/Rain Bird). | High-Flow Manifold Fits |
| 1 1/4″ BSP | approx. 41.9 mm (1.65 inches) | Intermediate mainlines, pump filters, and heavy-duty borehole connections. | Commercial Mainline Fits |
Parallel (G) vs Tapered (R) Threads: What’s the Difference?
When shopping for plastic or brass threaded parts, you might also hear the terms “Parallel” and “Tapered” threads. In 95% of domestic automated garden systems, we use **Parallel BSP threads** (internationally designated as ‘G’ threads). This means the thread diameter remains completely uniform from the start of the fitting to the end.
Parallel plastic threads are brilliant because they rely on flat rubber washers or O-rings inside the female side to establish a watertight seal. When joining male and female parallel plastic parts, you should tighten them firmly by hand. Over-tightening with a heavy metal wrench will strip the plastic valleys or crack the casing entirely.
Trade Tip: If you are joining threaded parts that do not have a built-in rubber washer (such as hex nipples or standard reducing sockets inside custom valve boxes), you must use high-quality PTFE thread seal tape. Wrap the tape clockwise around the male thread 10 to 15 times to fill the micro-gaps and guarantee a perfectly dry seal under high constant pressure.
Stop Guessing, Start Measuring
Before hitting checkout on your next batch of components, take a quick second to measure your existing tap or valve thread with a ruler and check it against our conversion chart. Eliminating the guesswork keeps your plumbing line moving and gets your landscape watering grid up and running without unnecessary delay.
If you are planning a bespoke manifold layout or need technical support matching up your threads across Cheshire or Warrington, get in touch with the trade counter at MB Irrigation today or browse our fully stocked threaded connectors catalog for rapid UK delivery.
