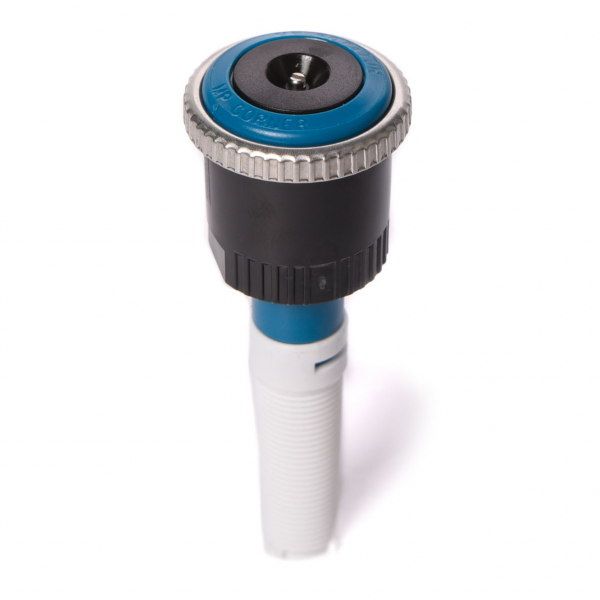

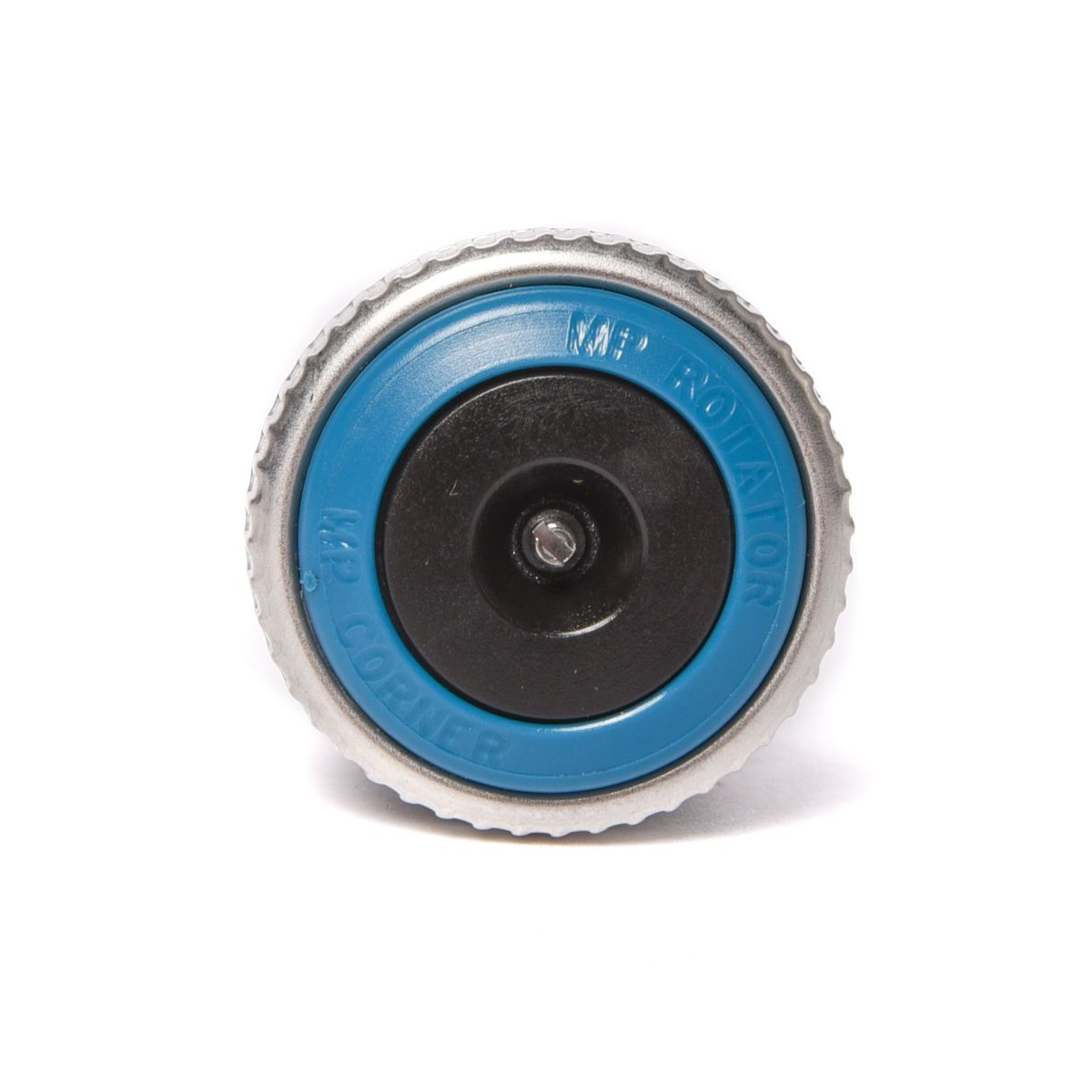

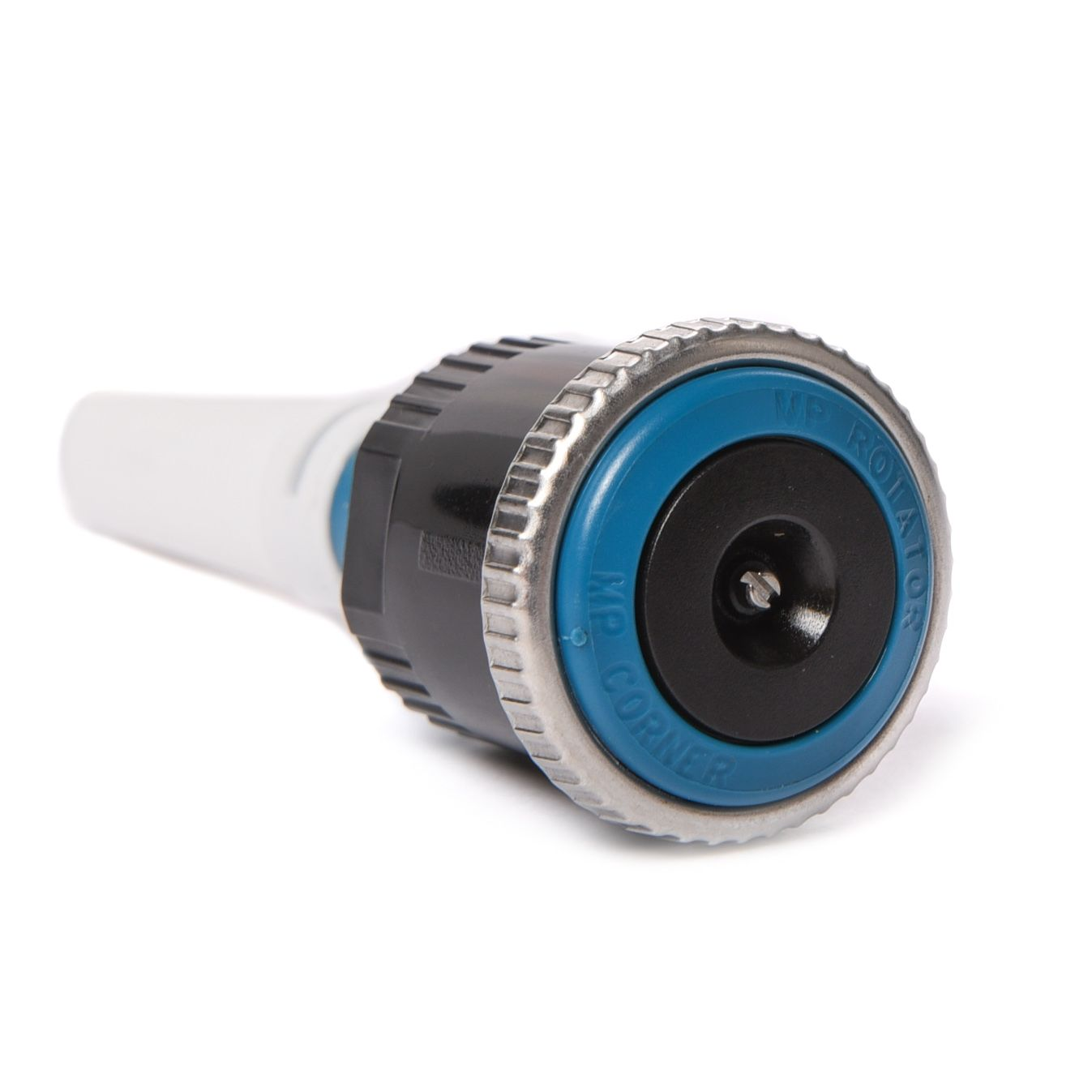

Hunter MP Corner Rotator Spray 45-105 st., 2,4-4,5 m

Specification

corner – spray radius: 2.4 to 4.5 m,
range: 45 to 105 °,
easy adjustment of the angle and range of work up to 25% without changing the nozzle,
the nozzles are screwed onto the head (body) of the static sprinkler.

CHARACTERISTICS AND ADVANTAGES

Better performance – multi-path jets provide excellent uniformity,
Adjusted rainfall – automatically adjusted rainfall even after adjusting the angle and range of work,
Reducing the amount of run-off water – the low rainfall dose reduces the amount of run-off water from sloping land with low water permeability,
Rotator technology – proven in difficult agricultural conditions since 1987,
Better protection against contamination – “Double ascent” flushes the sprinkler during start-up and shutdown,
Quick and easy adjustment – easy angle and range adjustment up to 25% without changing the nozzle.

FUNCTIONS

Actual precipitation adjustment at any arc or radius setting,
The radius can be reduced to a maximum of 25% on all models,
Color marking facilitates identification,
The double-jump function prevents dirt from falling into the nozzle,
Replaceable filter baffle prevents clogging of nozzles by large objects,
Low rainfall
Windproof multi-jet technology,
Range and radius adjustments ensure precise and timely settings.

ADVANCED FUNCTIONS

Ratchet mechanism prevents damage when attempting to over-shrink the radius,
Models can only be adjusted when water is flowing.

WORK PARAMETERS

Recommended operating pressure: 2.8 bar; 280 kPa,
Models can only be adjusted when water is flowing.
