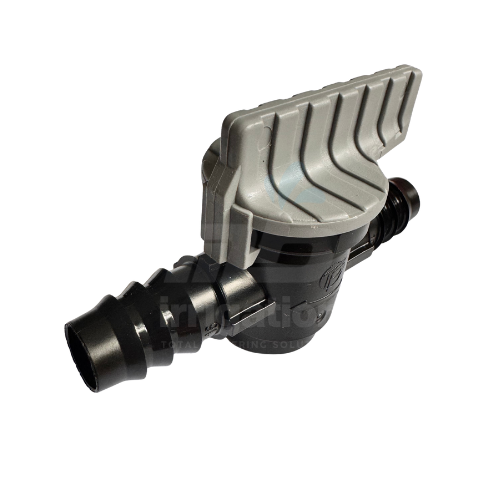

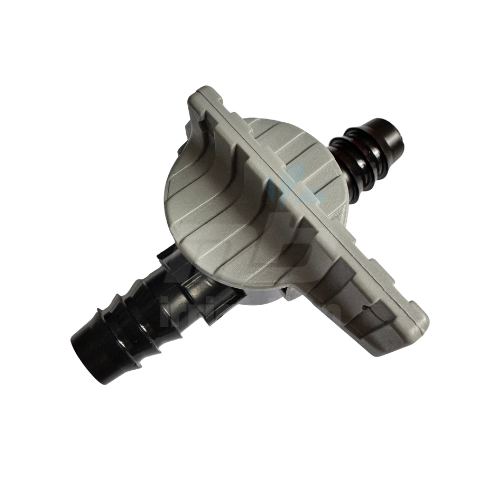

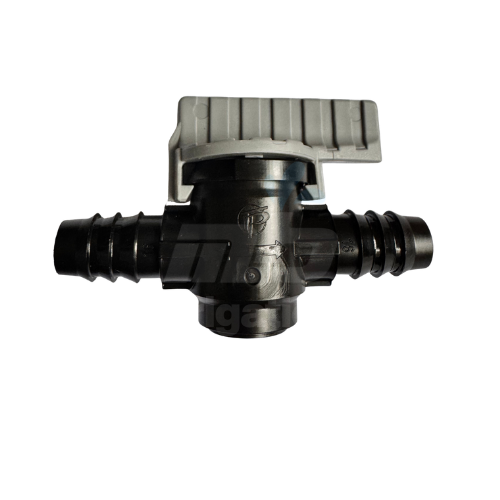

Plas-Fit Dripline Valve Barb Coupling 16mm x 16mm
The Plas-Fit Dripline Valve Barb Coupling 16mm-16mm (Symbol: V16) is a professional-grade inline valve designed for drip irrigation systems, allowing for precise flow control and isolation of specific watering zones. Available at MB Irrigation, this valve features a double-barbed 16mm connection, ensuring a fast, secure, and leak-free installation into LDPE pipes and driplines without the need for specialist tools.
Key Features
- Secure Barb Connections: Sharp, engineered ridges guarantee a tight grip on the pipe, preventing blowouts under system pressure.
- Weather & Chemical Resistant: Manufactured from high-quality Polypropylene (PP) and Acetal, providing excellent resistance to UV rays and agricultural chemicals.
- Smooth Operation: The ergonomic handle allows for easy quarter-turn manual isolation or flow regulation of individual irrigation zones.
- Leak-Proof Durability: Equipped with high-grade EPDM seals to ensure long-term reliability and drip-free performance season after season.
Technical Specification
| Property | Value |
|---|---|
| Brand | Plas-Fit |
| Part Code / Symbol | V16 |
| Connection Type | Barb x Barb |
| Size | 16 mm x 16 mm |
| Maximum Working Pressure | 8 bar (116 psi) |
| Body Material | Polypropylene (PP) / Acetal |
| Seal Material | EPDM |
Applications
The Plas-Fit V16 valve is ideal for:
- Zoning and isolating drip lines in domestic gardens, allotments, and commercial greenhouses.
- Shutting off specific flower beds or crop rows when not in use to save water.
- Agricultural and horticultural systems requiring robust, high-pressure fittings.
