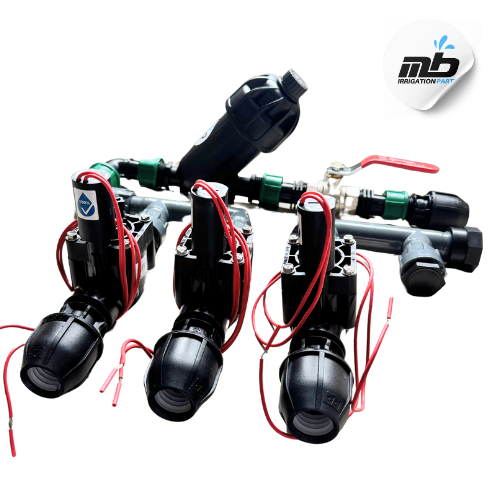

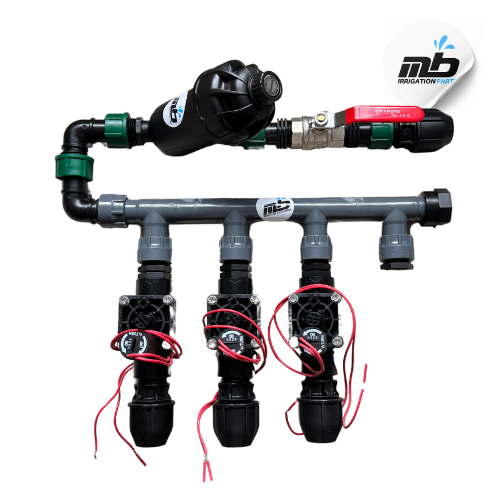

Irrigation Sprinkler Manifold with HUNTER Solenoid Valves – 3 Zone

A sprinkler manifold kit complete with HUNTER PGV 1″ Female Flow Control Valves. Ideal for installation inside a valve box or as a wall-mounted solution.

Lawn Watering Irrigation Solutions
Enjoy the time-saving benefits of an irrigation system! This sprinkler manifold kit is ideal for mounting to the wall next to the irrigation controller or can be placed directly inside the Valve Box.

3 x Hunter PGV 1″ Female Jar Top Solenoid Valve – Flow Control – 24V AC Coil

1 x Rain Swivel Manifold with 4 Female Outlets – 1” BSP

An irrigation manifold complete with elastomeric anti-perishable silicone rings certifying reliable watertight connections even under high water pressures of up to 10 Bar.

2 x Female Threaded Plug – 1“

Manufactured from UV-stabilised polypropylene for longer-lasting properties and installed to cap off the end of the irrigation manifold.

4 x Straight Compression Male Adaptor 25mm x 1‘’

Install to the outlet of each solenoid valve ready for 25mm LDPE Pipe installation. Each our compression fitting promises a secure watertight seal and is constructed to withstand high working pressures of up to 10 bar.

1 x PTFE Thread Seal Tape

Wrap each male thread with PTFE tape for secure irrigation joints and ultimate protection against leaking connections.

1 x Anti-sand Disc 120 Mesh Filter 1″ Male

The disk filter is used to purify water from sand and other impurities with micron-level accuracy (130 microns/120 mesh!) thanks to which it is characterised by high efficiency and high filtration capacity.

3 x Nipple 1″ BSP Male to 1″ BSP Male

Threaded connector nipple enabling easy connection of elements with the same internal threads. Used in water installations, including landscape irrigation systems.

2 x Swivel Manifold Elbow M-F 1 “-1”

Swivel POM M-F (GZ, GW) 1-1 “bends have been very popular for many years among companies dealing with irrigation and maintenance of green areas

2 x Swivel Manifold Straight M-F 1 “-1”

Collector passage for the construction of electrovalve switching stations. Thanks to the appropriate structure, it ensures tightness and allows easy disassembly.

1 x Steel ball valve with a packing Female 1″

Coupling type: Steel ball valve. Thread Diameter: 1″. Thread Type: Internal
